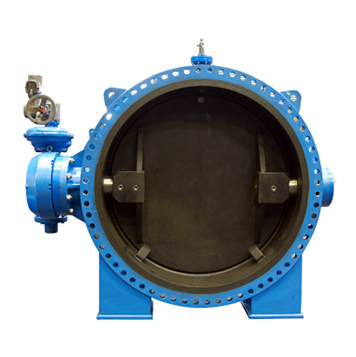

Double eccentric Butterfly Valves – steel welded

APPLICATION: water, drinking water, waste water (other on request)

DN 100 – 3000 (other on request)

PRESSURE: PN 6/10/16/25

CHARACTERISTICS

Material:

body/disc – S355J2+N or rubber lined

shaft – 1.4021

*other materials on request

Temperature: up to 60⁰C (higher temp. on request)

Face to face EN 558 serija 14

Installation flanges accordnig to EN 1092-2, other on request

Operation: gearbox and handwheel, gerabox and eletric actuator, electrohydraulic and weights, pneumatic

Test according to EN 12266
