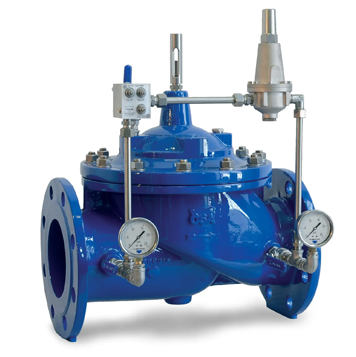

XLC 310/410 PN 25 – Downstream Pressure Reducing Valve

- The CSA model XLC 310/410 is a globe pattern hydraulically operated automatic control valve that reduces and stabilizes the downstream pressure to a constant value, regardless of variation in demands and upstream pressure conditions.
  Product features
  • Body and cover in ductile cast iron GJS 450-10.
  • Internals in ductile cast iron GJS 450-10 and stainless steel.
  • Position indicator in stainless steel.
  • Circuitry in stainless steel.
  • Unit flow regulator device, needle valves and flow stabilizers in stainless steel.
  • Seat in stainless steel.
  • Painting with fluidized bed technology RAL 5005.

  Applications
  • Downstream of pumps to reduce the pressure on the main supply line.
  • In derivation from the main line to stabilize the pressure of secondary line and water users.
  • As a protection against rise in pressure of industrial equipment, plants and civil installations.
  • On the inlet supply line of storage tanks to stabilize pressure and flow required for the level control.
  Standard and connections
  • Design and testing according to EN 1074.
  • Flanges size from DN 50 to DN 400 mm, higher on request.
  • Flanges standard EN 1092/2, different on request.

  Working conditions
  • Pressure range: 10-16-25 bar.
  • Minimum working pressure: 0.7 bar acting on the pilot.
  • Treated water maximum 70°C, higher temperature on request.

  Operating conditions
  – Pressure: 10-16-25 bar.
  – Minimum pressure: 0.7 bar on pilot.
  – Treated water maximum 70°C, higher values on request.
