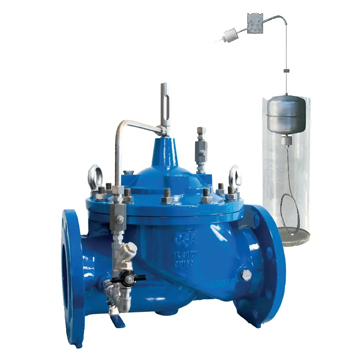

The CSA Model XLC 360/460-Rotoway-P is a globe pattern hydraulically operated automatic control valve that regulates the constant level of a tank, by means of a three ways pilot in stainless steel, regardless of upstream pressure variations.
Product features
• Body and cover in ductile cast iron GJS 450-10.
• Internals in ductile cast iron GJS 450-10 and stainless steel.
• Position indicator in stainless steel.
• Circuitry in stainless steel.
• Unit flow regulator device, needle valves and flow stabilizers in stainless steel.
• Seat in stainless steel.
• Painting with fluidized bed technology RAL 5005.
Applications
• For break pressure tanks, when a constant level control is needed and a stainless steel pilot is required.
• For level control on gravity fed pipelines.
• For small tank in need of maintaining a constant level with on/off regulation.
Standard and connections
• Design and testing according to EN 1074.
• Flanges size from DN 50 to DN 400 mm, higher on request.
• Flanges standard EN 1092/2, different on request.
Working conditions
• Pressure range: 10-16 bar.
• Minimum working pressure: 0.6 bar acting on the pilot.
• Treated water maximum 70°C, higher temperature on request.
