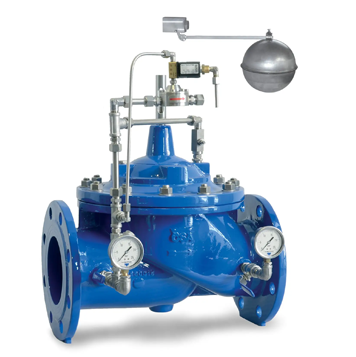

The CSA Model XLC 365/465-MCP, with proportional level control pilot in stainless steel, maintains the constant level of a tank, regardless of upstream pressure variations. The circuit is also equipped with a solenoid to enable an on-off control mode in response to signals from remote or by a controller.
Product features
• Body and cover in ductile cast iron GJS 450-10.
• Internals in ductile cast iron GJS 450-10 and stainless steel.
• Position indicator in stainless steel.
• Circuitry in stainless steel.
• Needle valves and flow stabilizers in stainless steel.
• Seat in stainless steel.
• Painting with fluidized bed technology RAL 5005.
Applications
• Necessary to maintain and ensure the water level of a storage tank to a preset and constant value, by means of a two ways proportional pilot, with the interruption of water supply in response of a signal linked to the sensor set to the maximum level.
Standard and connections
• Design and testing according to EN 1074.
• Flanges size from DN 50 to DN 400 mm, higher on request.
• Flanges standard EN 1092/2, different on request.
Working conditions
• Pressure range: 10-16-25 bar.
• Minimum working pressure: 0.6 bar acting on the pilot.
• Treated water maximum 70°C, higher temperature on request.
